ROTARY PARTS

A8V SERIES

PARTS DESCRIPTION

Rexroth / Uchida Hydraulic Piston Pump

Machine Use :
A8V55 A8V59 A8V80 A8V86 A8V107 A8V115 A8V172

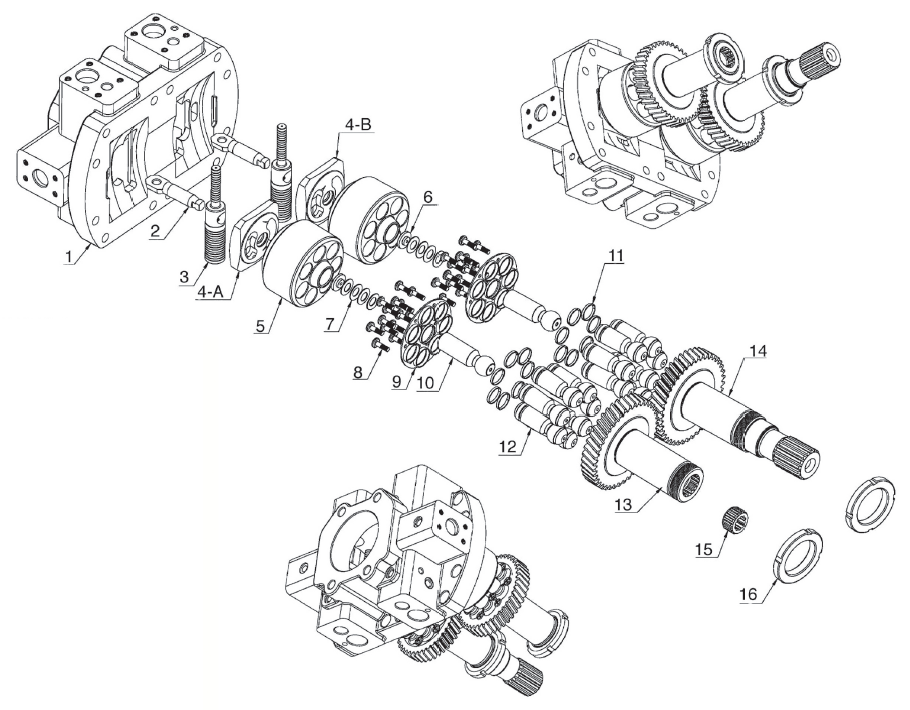

ITEM	DESCRIPTION QTY	REMARKS
1	HEAD COVER
2	SERVO PISTON PIN
3	SERVO PISTON
4-A	VALVE PLATE (L)
4-B	VALVE PLATE (R)
5	CYLINDER BLOCK
6	DISC SPRING HOLDER
7	DISC SPRING
8	SOCKET BOLT
9	RETAINER PLATE
10	CENTER PIN
11	RING OF PISTON
12	PISTON SHOE
13	DRIVE SHAFT (L)
14	DRIVE SHAFT (R)
15	COUPLING
16	LOCK NUT
